Living hinge examples
03 Feb 2016

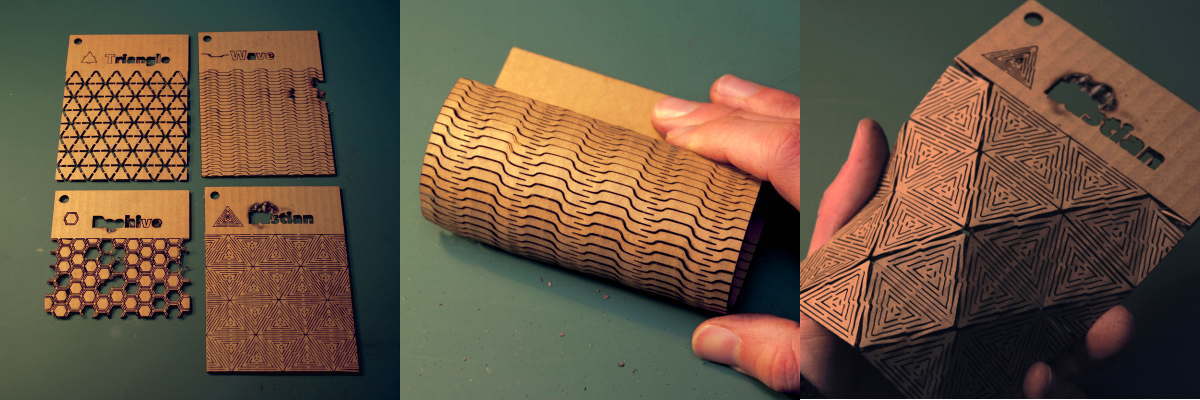

Obrary living hinge pattern fabric Obrary more living hinge swatches hinge swatch description
Illumination A Group that is part of the Open design
Lid/ Outer design
03 Feb 2016

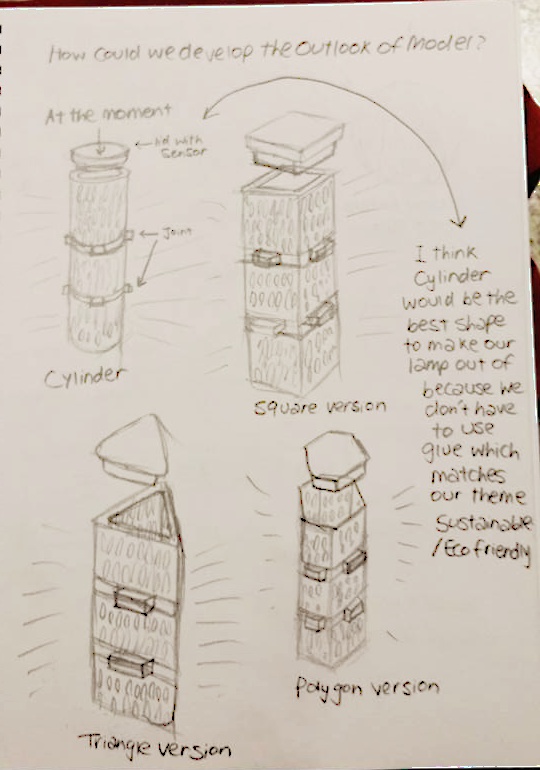

Our model is cyliner shaped but I wanted to see how it would look like if it was in other shape such as triangle, square.
The best shape to use is cylinder because we want our model to be eco-friendly and glue free.
We will try to create a living hinge so the materials could bend well and not snap off.
Because Our outer designs are sorted I though I would have a look at design suttle element such as designing a lid. I thought I would use patterns that Kate have made to create a logo.

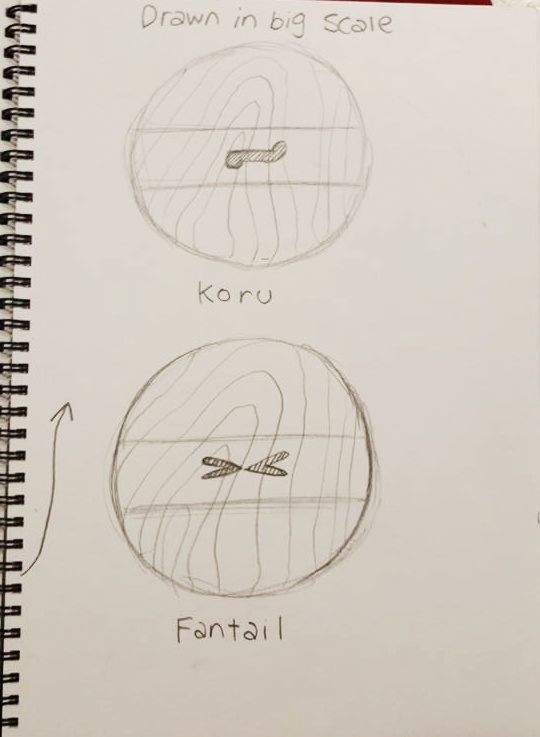

Here are the final design of the lid.
Sketch for Connecting lamps together
03 Feb 2016

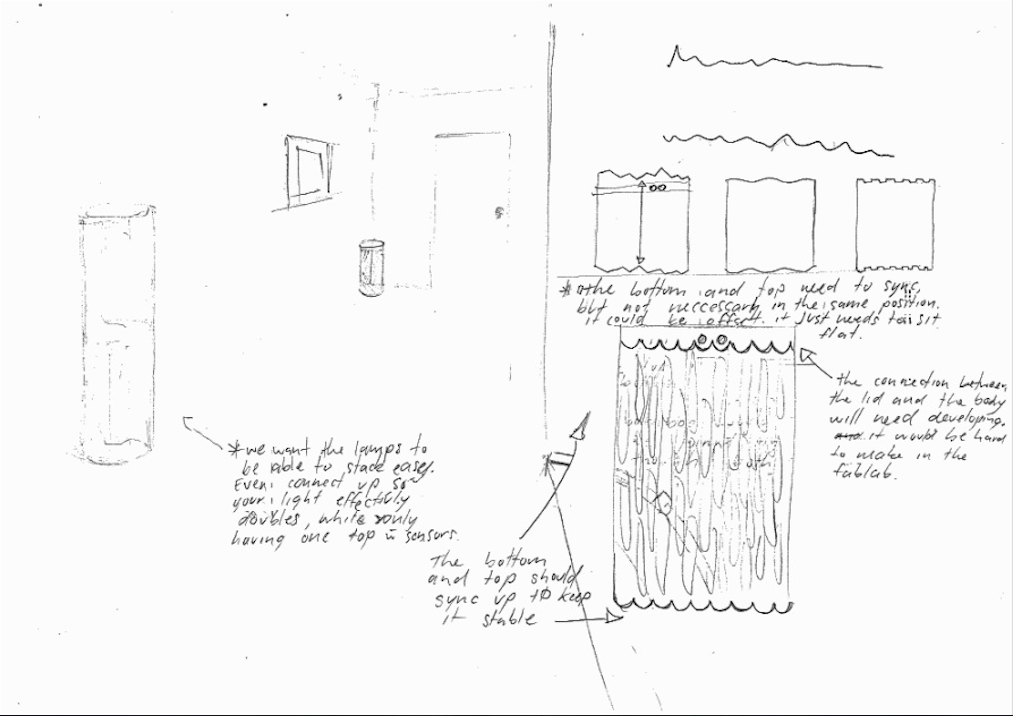

This is Fin’s sketch ups for connecting the lamp. We will try to sketch it up onto the computer just to see if it works out.

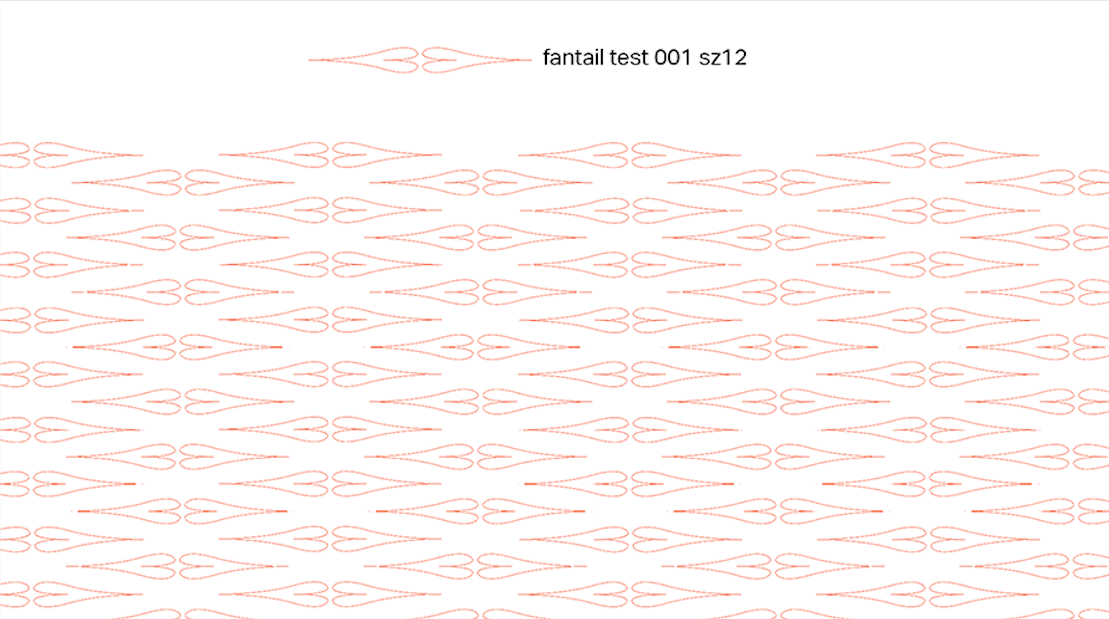

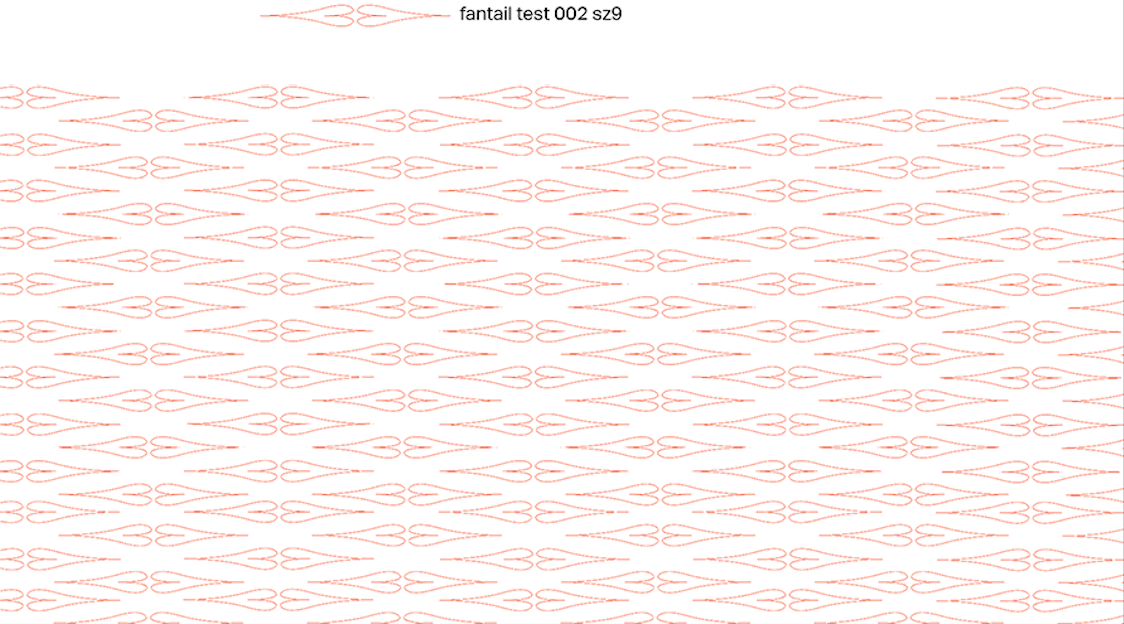

fantail kerf patterns
03 Feb 2016creating some custom kerf patterns that carry local nz motifs. this one is an abstract faintail test in two sizes.
Sketching our models
02 Feb 2016We are figuring out how to make our models work, and trying to figure out the patterns that we would cut through on our model. For the pattern we want something that would bend smoothly without breaking.

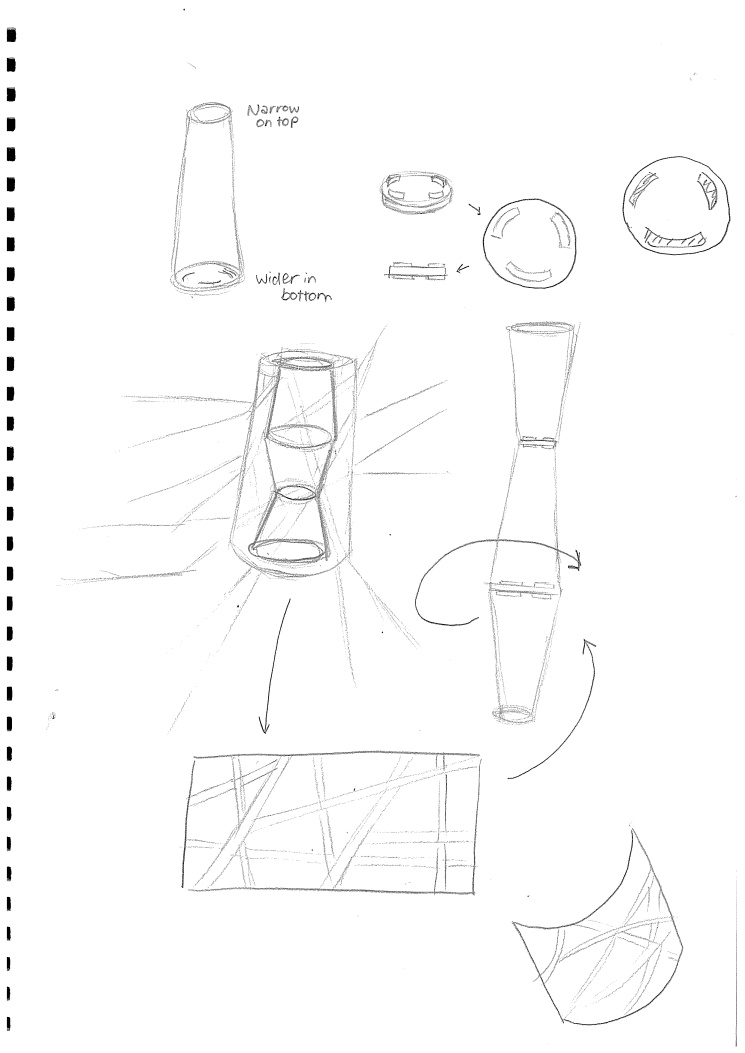

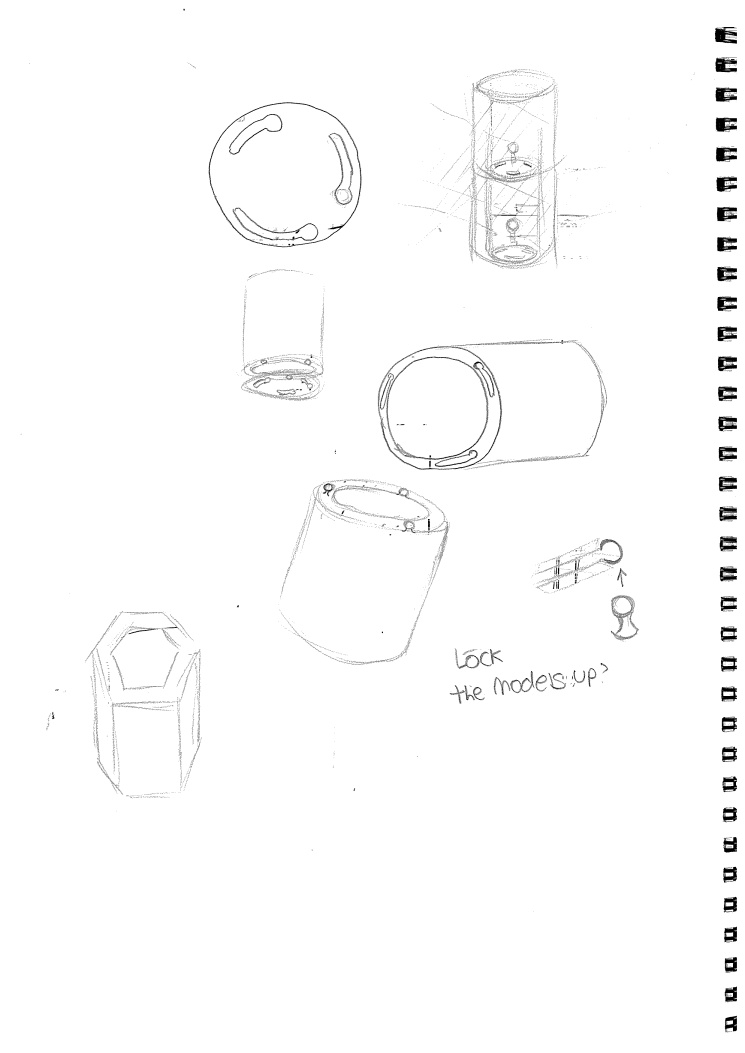

Figuring out the shape of the lamp

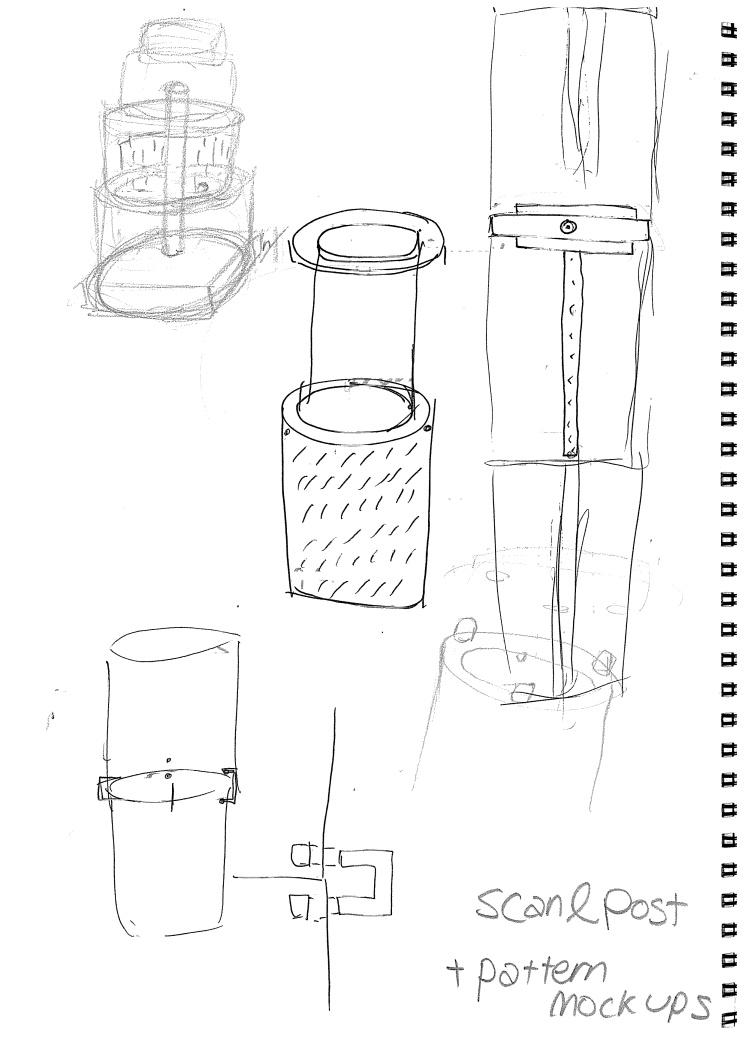

figuring out how to connect lamp on top of each other

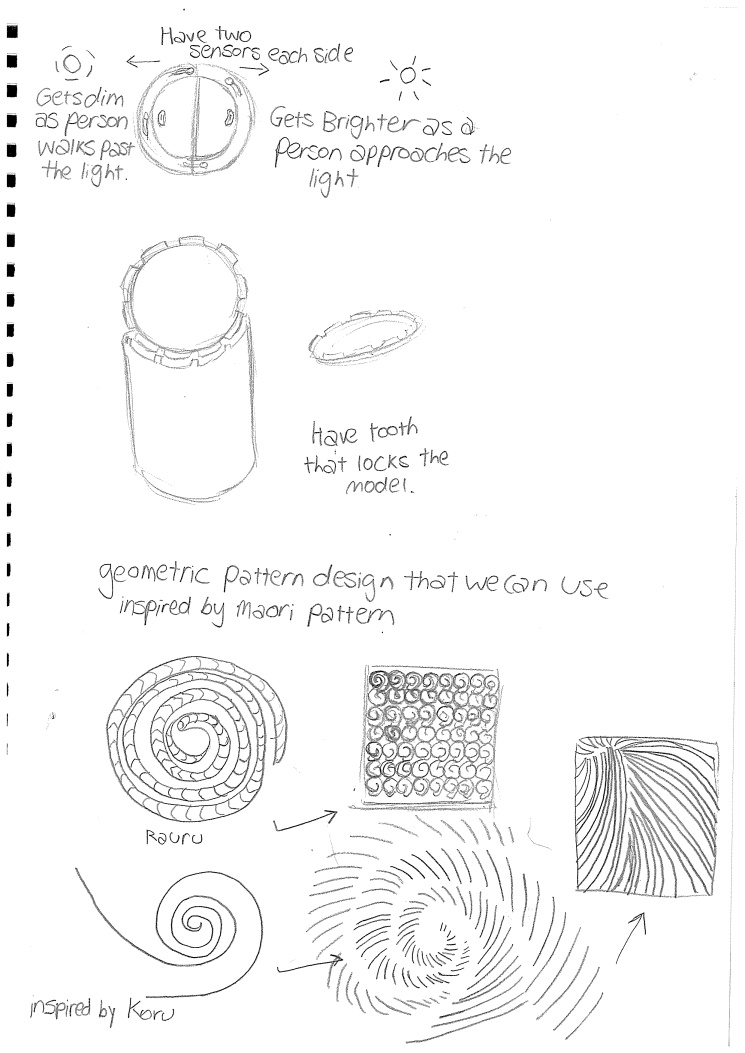

Thinking about pattern

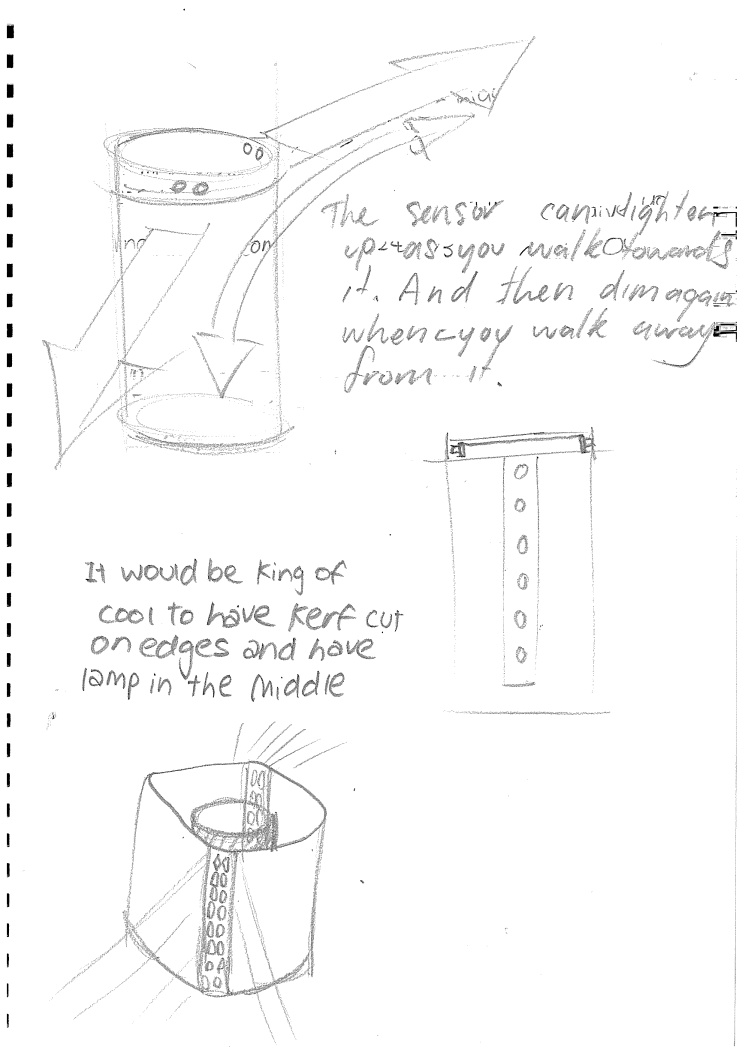

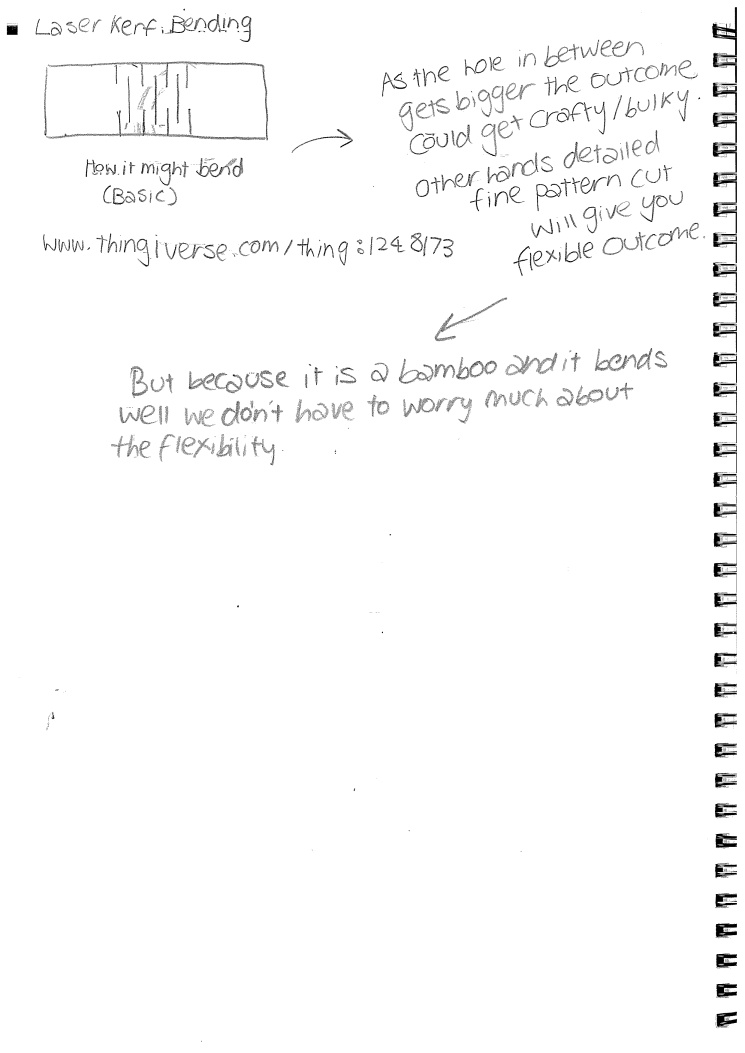

Thinking about kerf bending /logic
Sketch done by Fin
Sketch done by Kate
